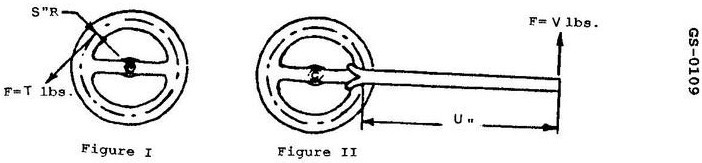

Figure "I" shown in the illustration is a diagram of a valve handwheel, with S=5 inches and T=50 lbs.When an 18 inch cheater bar is used instead, and V=50 lbs., as shown in Figure "II", what value of additional torque is now being applied to the hand wheel valve stem?
