According to the illustration, what dimension would indicate the Pitch Diameter of the thread?

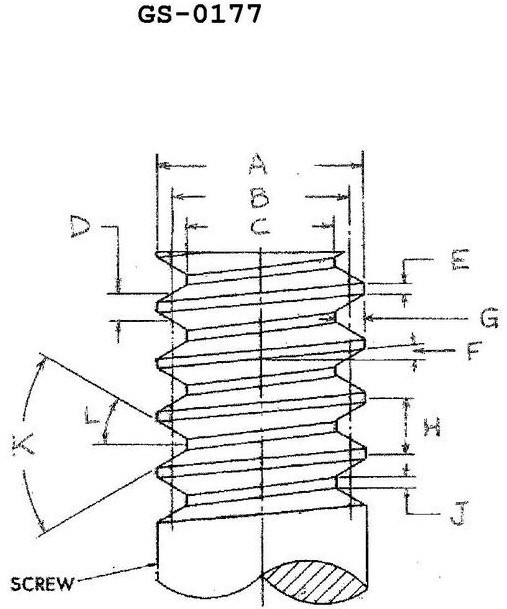

USCG illustration GS-0177 for Engine 2014 General Subjects question 198 — Illustration GS-0177

0 ✓ | 0 ✕ 10 free left today

Tip: press A-D to answer

More General Subjects questions

#196 According to the illustrated water filled U-tube draft gage, what is the converted draft reading in pounds per square in...
#197 According to the illustration, what dimension would indicate the Helix Angle of the thread?
#199 According to the illustration, what would be the value of dimension "H" for a screw thread identified as 3/4-13 NF.
#200 According to the illustration, what would be the value of the angle labeled "L" for an American Standard screw thread?
#201 According to the illustration, which of the following conditions would most likely cause Pump "A" to short cycle?
