Engine: Motor Plants and Auxiliary Boilers

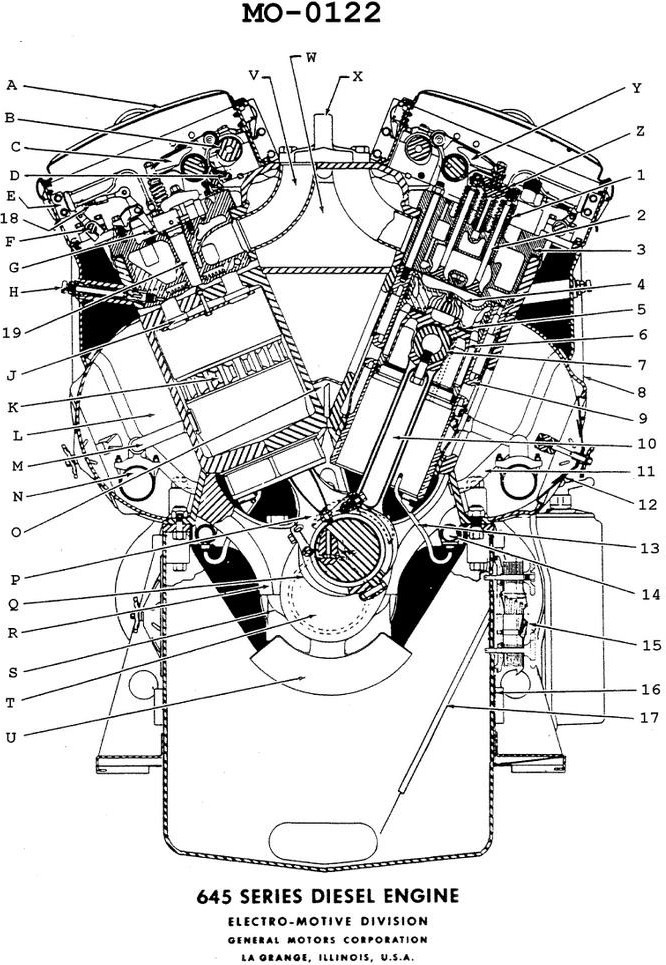

1. A The inlet jumper directs cooling water to the cylinder liner.
2. B The device delivers the oil for piston cooling, in addition to liner lubrication.
3. C The water pipe is the mechanism in which the 'shaker' method of piston cooling is accomplished.
4. D The sample tube monitors the cylinder for evidence of piston blow-by.
