Engine : Electricity - 1322/1386
|
|---|
| « Previous Question |
| A carbon resistor has a resistance of 50 ohms, and a tolerance of 5 percent. What would be the respective colors indicated for bands 1, 2, 3 and 4 for this resistor as shown in figure "A" of the illustration? EL-0103 |
| A) green, black, black, and silver. |
| B) green, black, black, and gold. |
| C) gray, black, brown, and silver. |
| D) gray, black, brown, and gold. |
loading answer...

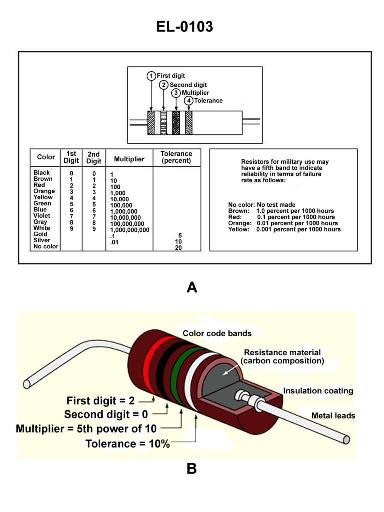

Illustration EL-0103
