Question

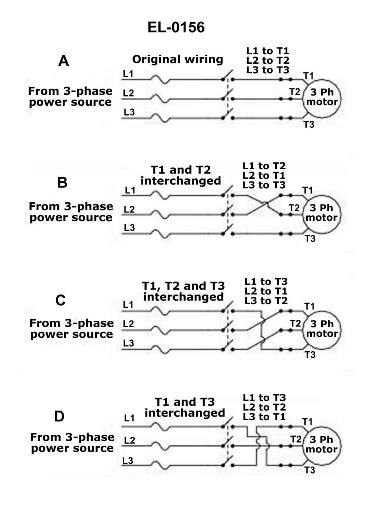

Assuming that the 3-phase power source has a phase sequence of A-B-C and that the motor is connected as shown in figure "A", if the motor has a counterclockwise (CCW) rotation, what statement is true concerning the motors connected as shown in the other figures? Illustration EL-0156

Accepted Answer

Motors "B" and "D" would have a clockwise (CW) rotation and motor "C" would have a counterclockwise (CCW) rotation.

Engine: Electricity

Assuming that the 3-phase power source has a phase sequence of A-B-C and that the motor is connected as shown in figure "A", if the motor has a counterclockwise (CCW) rotation, what statement is true concerning the motors connected as shown in the other figures? Illustration EL-0156
