As shown in the illustration of a DC diesel-electric propulsion drive system, what would be the set-up contactor configurations if #1 M/E is to be sec...

Question

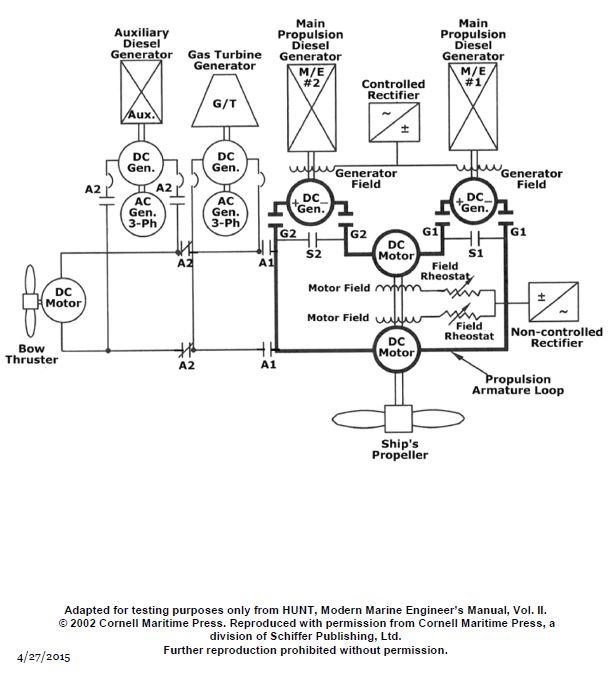

As shown in the illustration of a DC diesel-electric propulsion drive system, what would be the set-up contactor configurations if #1 M/E is to be secured, so that only #2 M/E diesel- generator is set up to supply both propulsion motors? EL-0141

Accepted Answer

contactors G2 and S1 pulled in; contactors G1 and S2 dropped out

Engine: Electricity

As shown in the illustration of a DC diesel-electric propulsion drive system, what would be the set-up contactor configurations if #1 M/E is to be secured, so that only #2 M/E diesel- generator is set up to supply both propulsion motors? EL-0141
