As shown in figure "A" of the illustration, what is the primary reason that the propulsion transformers are configured differently so as to produce a...

Question

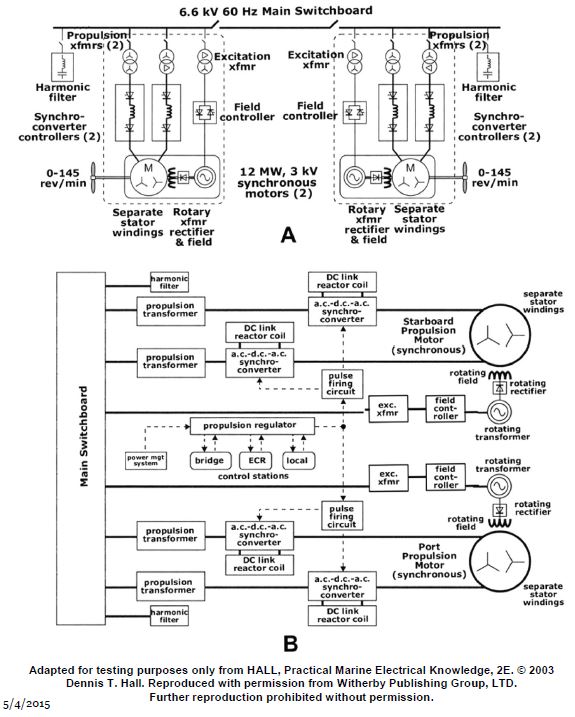

As shown in figure "A" of the illustration, what is the primary reason that the propulsion transformers are configured differently so as to produce a 30 degree phase shift in the pulses between the two synchroconverters supplying separate stator windings? Illustration EL-0160

Accepted Answer

to minimize motor shaft vibration

Engine: Electricity

As shown in figure "A" of the illustration, what is the primary reason that the propulsion transformers are configured differently so as to produce a 30 degree phase shift in the pulses between the two synchroconverters supplying separate stator windings? Illustration EL-0160

More Electricity questions
