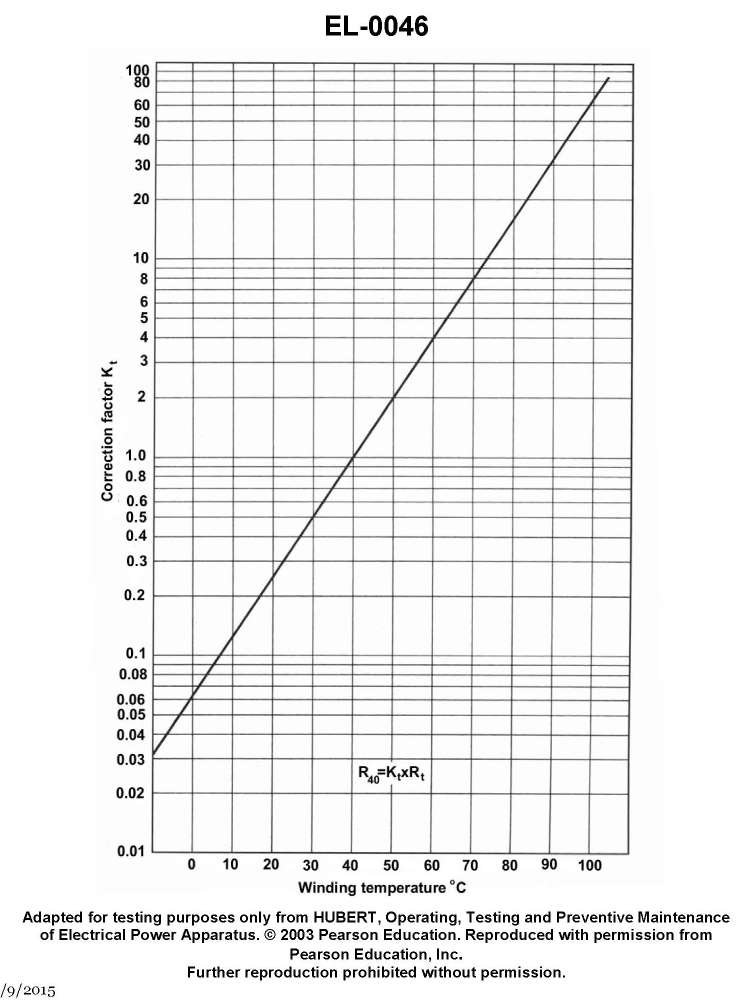

Using the temperature correction factor for the winding insulation temperature graph shown in the illustration, what would be the correction factor and the corrected temperature to 40 degrees C for a motor with a insulation resistance of 4 megohms measured at 50 degrees C? EL-0046
