Engine: General Subjects

Question 1,948 of 1,128

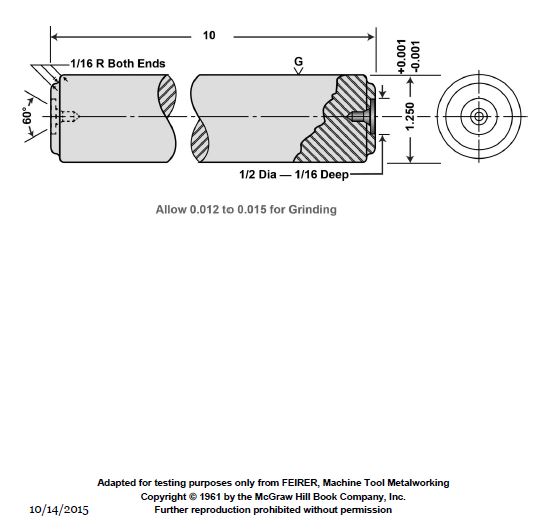

The illustration shown represents a blueprint of a metal __________. Illustration GS-0028

USCG illustration GS-0028 for Engine General Subjects question 1948 — Illustration GS-0028

0 ✓ | 0 ✕ 10 free left today

Tip: press A-D to answer

More General Subjects questions

#1942 The term, whole depth of the gear, shown in the illustration, is equal to __________. Illustration GS-0111
#1947 In the illustration shown, what is the distance indicated by dimension "I"? Illustration GS-0001
#1959 Which of the conditions listed does the blueprint symbol shown in the illustration represent? Illustration GS-0028
#1962 Using the information in the illustration shown, the tail of the welding symbol will __________. Illustration GS-0030
#1964 The exploded drawing shown in the illustration is intended to show the __________. Illustration GS-0025
