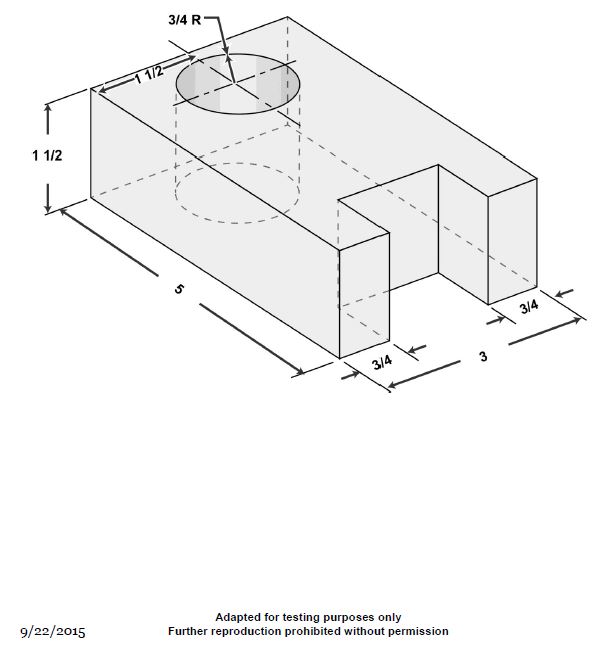

How many hidden lines are shown in the right side (end) view of the drawing illustrated? GS-0021

USCG illustration GS-0021 for Engine Expired / General Subjects question 805 — Illustration GS-0021
