Retired question: the Coast Guard no longer draws it on exams. Practice the current General Subjects module instead.

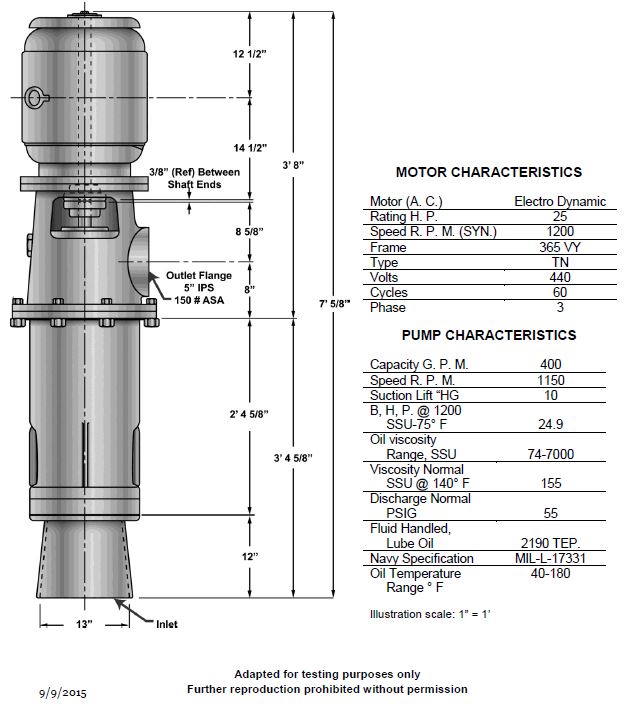

What is the distance between the center of the discharge outlet and the top of the motor illustrated? GS-0011

USCG illustration GS-0011 for Engine Retired questions · General Subjects question 793 — Illustration GS-0011

0 ✓ | 0 ✕ 10 free left today

Tip: press A-D to answer
