Engine : Electricity - 586/1386
|
|---|
| « Previous Question |
| What would the total power consumed by the circuit as shown in figure "A" of the illustration if the source voltage is 12 volts, the resistance for R1 is 470 ohms, the resistance of R2 is 330 ohms, and the resistance of R3 is 800 ohms? Illustration EL-0032 |
| A) 90 milliwatts |
| B) 180 milliwatts |
| C) 360 milliwatts |
| D) 720 milliwatts 127 August 2014 --------------------------------------- 128 United States Coast Guard Electrical-Electronics-Control Engineering National Maritime Center Assistant Engineer-DDE |
loading answer...

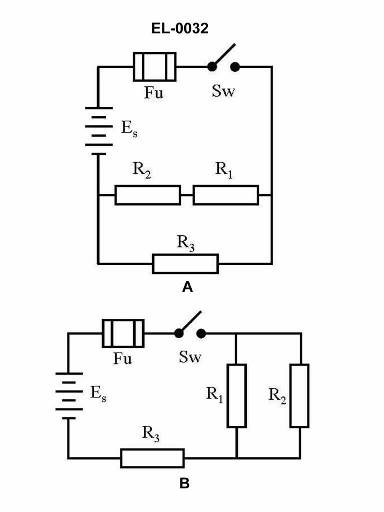

Illustration EL-0032
| Comments |
|---|
| There are no comments for this question. |
