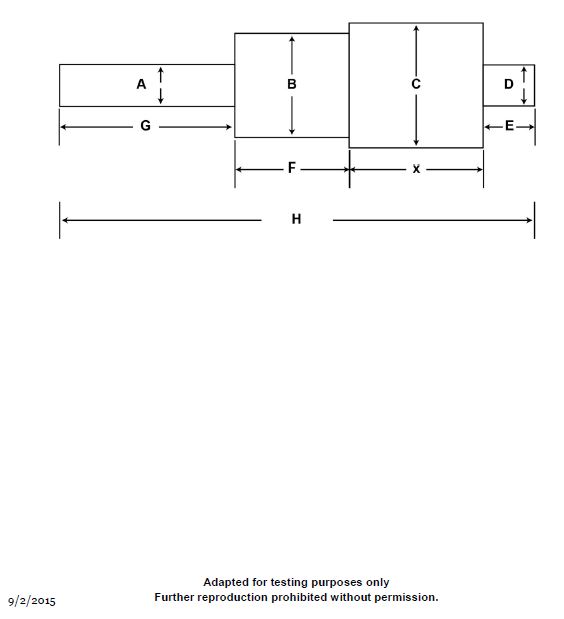

| The illustration is drawn to a scale of 3/8 inch = 1 inch. What is the full size dimension of "X", if the scale lengths for "E" = 5/8", "F" = 1 3/8", "G" = 2 1/8", and "H" = 5 3/4"? GS-0007 |
| A) 1.625 inches |
| B) 4.333 inches |
| C) 6.094 inches |
| D) 15.333 inches |
loading answer...
Illustration GS-0007
